Intended use:
to assess the morphological parmeters of cells such as spermatozoa. The stained cells can be assessed with them help of an automated system(i.e. CASA) or manually。
Principle of the device:
when a small volume of cells / semen is deposited on a pre-stained slide,the fixative-stain film dissolves in fluid/seminal plasma and stains (sperm) cells。
Preparations before use:

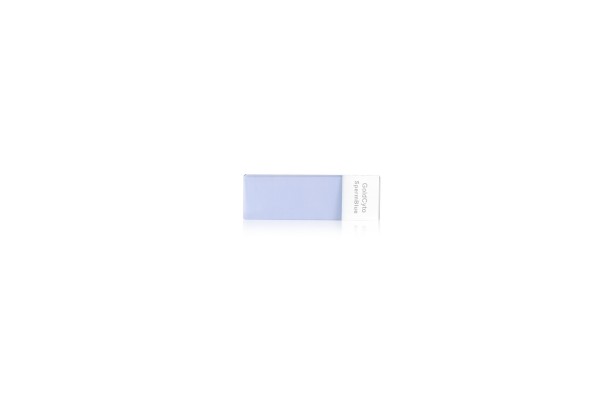

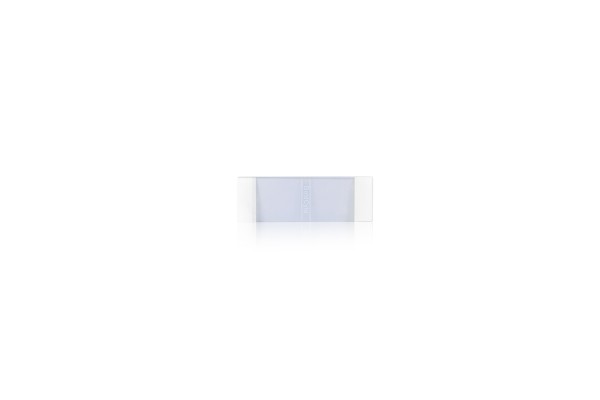

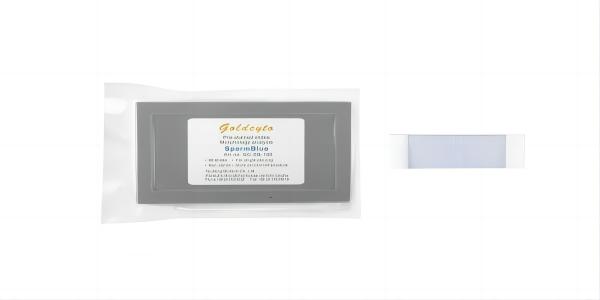

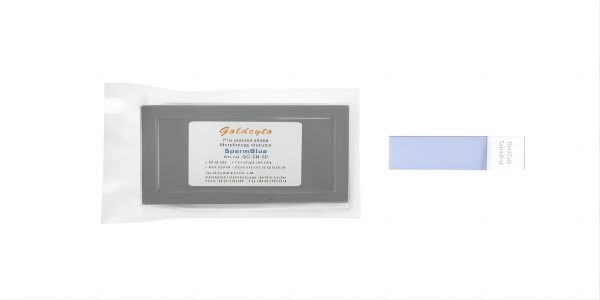

Remove GoldCyto pre-stained morphology slide from packaging and take care not to touch the coated area. Make sure the coated area is undamaged. Access to an incubator at 55°C / 131F, or an ethanol flame. Use semen after liquefaction or (sperm) sample in a culture medium。
Staining Procedure：
*Check the color stained on surface before add on sample 。
*Pipette 5μl of sample on the endside of the slide prepare the smear like figure 1。
*Put the slide on the hotplate 56°C 30 -60 seconds。
*Drop the slide into the water jar 1 second。
*Dry the slide in hotplate。
*Start assessment immediately after。
Automatic analyzing -use SCA sperm morph.
System In order to improve the efficiency of the accuracy of the sperms identification
We recommend to wash the sample .
Wash procedure:
1.mix gently of 0.2~0.5ml (relate with the density of sperm) liquefaction semen with 10ml physiological saline or 10ml PBS (pH7.4 ± 0.2)
2.centrifugal 10min 800g
3.removing most of the supernatant
4.Mix gently the rest, usually a 20~40μl.
5.count the concentration of sperm
1)= 45M/ml,perfect go to Staining procedure
2)< 45M/ml,add 20ul physiological saline or 10ml PBS (pH7.4 ± 0.2) repeat step 2
3)> 45M/ml,dilute
